USKS5071

2007 Service King 775 p/b (2)DETROIT 60 series Diesel Eng, ALLISON 754 CLBT Trans, Drawworks- 42x12 w/disc assist brake, SK 112’H 300,000# Telescoping Mast, Hydraulically Raised and scoped Mtd on 6-Axle Carrier w/Sgl-Man Cab, Hyd Leveling Jacks, Hyd Utility Hoist, Air & Hyd Control, Flotation Front Tires

****************************************************************************************************

USKS5104

COOPER 350 DRILLING RIG REBUILT 8V71 ENGINE, NEW 750 ALLISON TRANSMISSION, 96’ 200,000# DERRICK , 6’ SUBBASE WITH WINCH
USKS5104

****************************************************************************************************



RIG PACKAGE - TRIPLE


DRAWWORKS
BREWSTER MODEL N42 SINGLE DRUM MECHANICAL DRAWORKS WITH CATHEAD AIR DRILLERS CONSOLE COMPLETE WITH
22” HYDROMATIC BRAKE AND 2 ENGINE INLINE COMPOUND WITH QUINCY 350 AIR COMPRESSOR WITH TWO 550 H P
CATERPILLAR MODEL C-15 DIESEL ENGINES WITH RADIATOR, GAUGES AND ALLISON TC 955 TORQUE CONVERTERS, TOTALING 1100
HP


MAST & SUBSTRUCTURE
126’ X 146’ LEE C MOORE CANTILEVER MAST WITH 288,000# STATIC HOOK LOAD CAPACITY WITH CROWN TO RUN 8
LINESCOMPLETE WITH 10’ HIGH BOX SUBSTRUCTURE WITH CATWALK


ROTARY EQUIPMENT
(1)17-1/2” X 44” IDECO ROTARY TABLE WITH MASTER BUSHING
(1) BREWSTER MODEL 6SX ROTARY SWIVEL
(1) 4-1/4” X 40” SQUARE KELLY WITH KELLY DRIVE BUSHING


TRAVELING EQUIPMENT
MCKISSIK 150 TON 4 SHEAVE BLOCK WITH BJ HOOK AND LOCK


HANDLING TOOLS
(1) SET ROTARY TONGS WITH LUG JAWS FOR DRILL PIPE AND DRILL COLLARS
(1) SET EACH DRILL PIPE AND DRILL COLLAR SLIPS
(1) SET EACH DRILL PIPE AND DRILL COLLAR ELEVATORS


UTILITY HOUSE/GENERATORS
(1) 310 KW GENERATOR WITH 3406 CATERPILLAR 450 H.P,
(1) 250 KW GENERATOR WITH 3406 CATERPILLAR 375 H.P.,
WITH BOTH GENERATORS MOUNTED IN HOUSE WITH TOOL ROOM AND 370 QUINCY AIR COMPRESSOR


FUEL/WATER TANKS
(1) 500 BARRELL SQUARE WATER TANK WITH TWO 2” X 3” MISSION CENTRIFUGAL PUMPS
(1) 6,000 GALLON FUEL TANK WITH OIL LUBESTERS


MUD PUMPS
(1) H 850 NATIONAL DUPLEX PUMP WITH 379 CATERPILLAR 600 HP-16” STROKE


ELEVATORS

1 SET 5 ½, 1 SET 8 5/8


SLIPS
1 SET COLLAR SLIPS
1 SET 8 5/8 SLIPS
1 SET 5 1/2 SLIPS


MISCELLANEOUS EQUIPMENT
(2) 50 HP MUD MIXING MOTORS AND PUMPS
(1) 36’ x 5’ x 12’ SHAKER PIT – 360 BBLS
(1) 30’ x 5’ x 12’ SUCTION PIT – 300 BBLS
(1) CHEMTRON DUAL LINIER SHAKER
(1) 4’ TALL X 8’ WIDE X 20’ LONG SLUG TANK
(1) 8 X 8 X 35 TOP DOGHOUSE WITH SATELITE AUTOMATIC DRILLER AND PASON DRILLING RECORDER

CATWALK
(1) DORLAND BOP (1)JUNK BOX
(1) COLLAR LIFT SUBS – X4
(1) WEDDING BAND
(1) DERRICK HEADACHE STAND
(4) PIPE BOXES
(3) SETS PIPE RACKS



************************************************************************************************************************

RIG PACKAGE - DOUBLE


DRAWWORKS
WILSON MOGUL 42 DRAW WORKS W/ 2-3406 – 450 H.P. EACH TOTAL 900 H.P. CAT ENGINES W/2 TWIN DISC TORQUE CONVERTORS, 1-15 INCH PARMAC HYDROMATIC

MAST & SUBSTRUCTURE
LEE C. MOORE 105 FT DOUBLE DERRICK-RATED AT 250,000 LBS
LEE C. MOORE 10 FT TALL; 24 FT WIDE X 40 FT LONG SUBSTRUCTURE

ROTARY EQUIPMENT
RSB 180 ROTARY TABLE
4SX BREWESTER SWIVEL W/ 40 FT SQUARE KELLY
BJ 125 TON TRAVELING BLOCK W/ DYNAPLEX 510 HOOK

HANDLING TOOLS
(1) SET ROTARY TONGS WITH LUG JAWS FOR DRILL PIPE AND DRILL COLLARS
(1) SET EACH DRILL PIPE AND DRILL COLLAR SLIPS AND ELEVATORS
(1) SET EACH CASING SLIPS 4 ½”, 8 5/8”

UTILITY HOUSE/GENERATORS
(1) 250 KW GENERATOR WITH 3406 CAT ENGINE IN A 10X35 GENERATOR & PARTS HOUSE
(1) 225 KW GENERATOR WITH 3306 CAT ENGINE IN A 8X40 GENERATOR & BOTTOM DOG HOUSE
(1) 10 FT TALL, 8 FT WIDE X 40 FT LONG WATER TANK
(1) 8’ X 24’ TOP DOG HOUSE WITH AUTOMATIC DRILLER
(1) 5000 GALLON DIESEL TANK

MISCELLANEOUS EQUIPMENT

(2) 370 QUINCY AIR COMPRESSORS
(2) 4’ TALL X 10’ WIDE X 38’ LONG STEEL PITS W/DUAL AGITATORS-500 BBL SYSTEM
(1) 4’ TALL X 8’ WIDE X 20’ LONG SLUG TANK-100 BBL
(1) CHEMTRON LINIER DOUBLE SCREEN SHALE SHAKER
(2) 50 HP MISSION MUD MIXERS
(1) 10 ¾” DORLAND BOP
(1) 8 X 15 JUNK BOX
(3) SETS PIPE RACKS
(1) 40’ CAT WALK W/ V-DOOR
2500’ OF 1” DRILLING LINE
(4) PIPE BOXES
DERRICK HEADACHE STAND
(10) VARIOUS SIZED CHANGE OVER SUBS
(1) 6 ½” WEDDING BAND
(1) TANDEM AXLE TRAILER FOR OIL DRUMS
(1) 4” MUD BUCKET
(1) PIPE ROLLER FOR V-DOOR
(1) MARTIN DECKER WEIGHT INDICATOR
(10) DRILL COLLAR LIFTING SUBS
(1) GELOGRAPH RECORDER

MUD PUMPS
(1) D 375 EMSCO DUPLEX PUMP W/ 353 CAT ENGINE



***********************************************************************************************************************



Mac 300

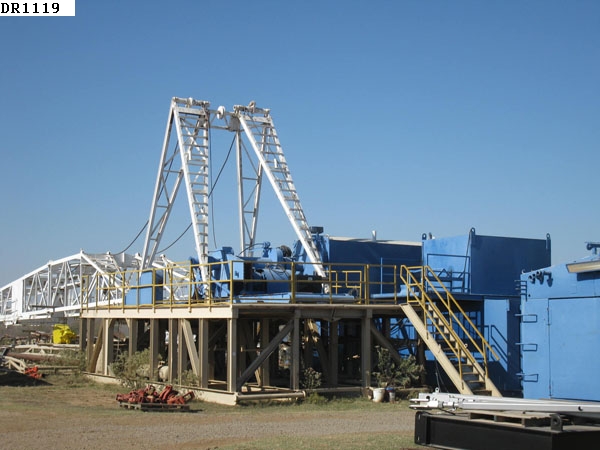

MAC 300 Conventional Drilling Rig



************************************************************************************************************************



Lee C. Moore 127' High speed

Cardwell 350 Drawworks, Mud Pumps, Pits

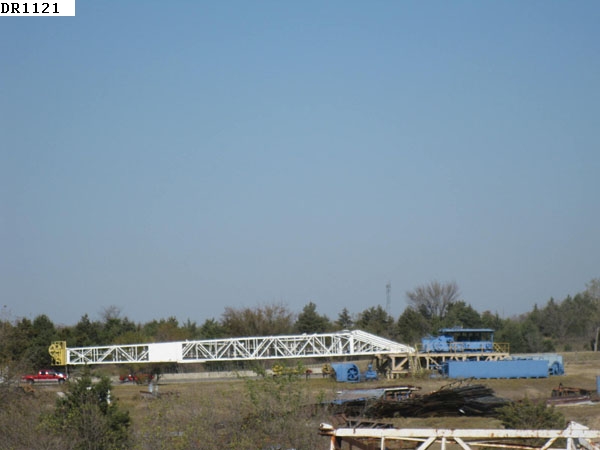

Lee C. Moore 127' Conventional Drilling rig



************************************************************************************************************************



T-12 National

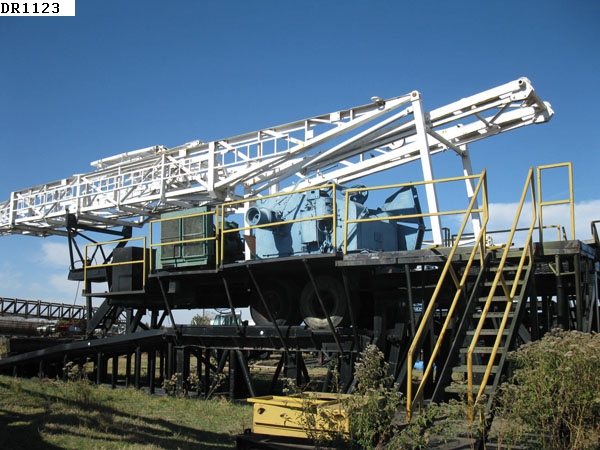

T-12 National Conventional Drilling rig



************************************************************************************************************************



T-32 NATIONAL

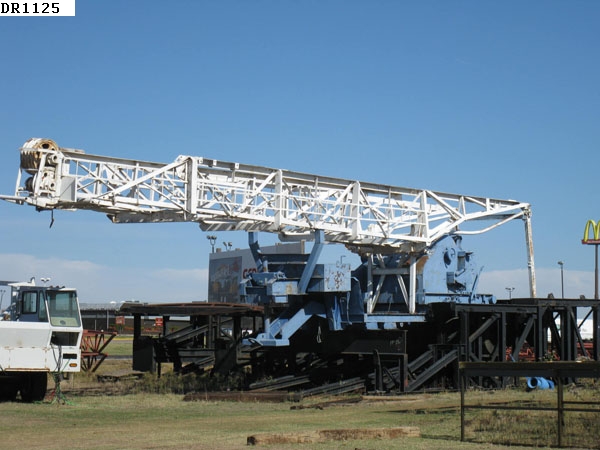

T-32 National Conventional Drilling Rig



************************************************************************************************************************



Gardner Denver 1500 Electric



************************************************************************************************************************



Brewster N45



************************************************************************************************************************



New Drilling Rig Packages also available!
